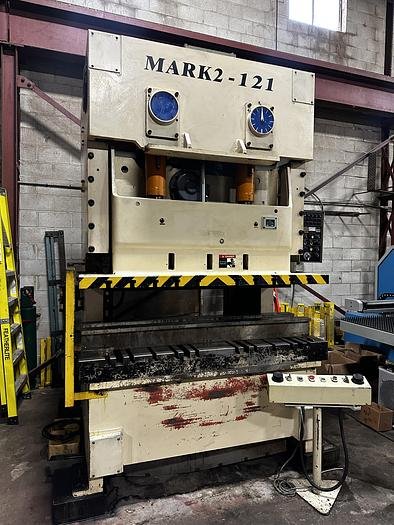

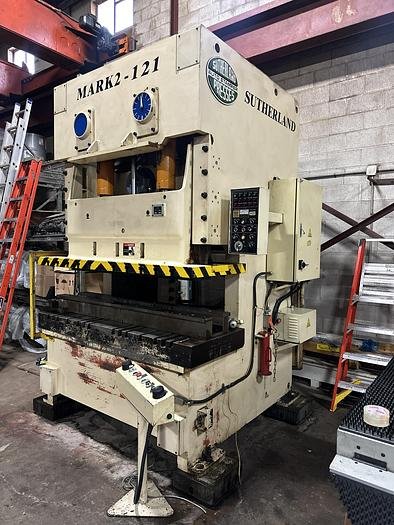

SUTHERLAND 121 TON OBS GAP FRAME PRESS -2000
SUTHERLAND 121 TON OBS GAP FRAME PRESS -2000 - Image 2
SUTHERLAND 121 TON OBS GAP FRAME PRESS -2000 - Image 3
SUTHERLAND 121 TON OBS GAP FRAME PRESS -2000 - Image 4

SUTHERLAND 121 TON OBS GAP FRAME PRESS -2000

Equipped With

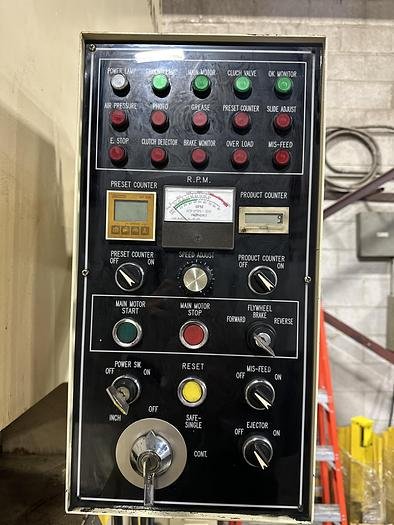

PENDANT CONTROL :

VARIABLE SPEED ADJUST DIAL

SLIDE ADJUST – SWITCH/BUTTON

FORWARD/FLYWHEEL BRAKE/ REVERSE SWITCH

INCH/OFF/SAFE-SINGLE/CONT. SWITCH

PRESET & PRODUCT DIGITAL DISPLAY COUNTERS

AUTOMATIC LUBRICATION

PEDESTAL PALM BUTTON CONTROL

BALANCER PRESSURE ADJUSTMENT DIALS FOR CLUTCH VALVES & CYLINDER VALVES

Category:

Description

Manufacturer SUTHERLAND
Model FTP-110 / MARK2 -121
Year 2000
Stock Number 4685
MODEL MARK2-121 -1W
CAPACITY – TONNAGE 121 TONS
SLIDE AREA 74″x 27.5″
STROKE 3″
BOLSTER AREA 74″x 27.5″
DIE SPACE 14.96″
STROKES PER MINUTE 45-90 SPM
ELECTRICS 575V/3/60
MOTOR 15 HP
BOLSTER THICKNESS 5.9″
OVERALL HEIGHT 122″
FLOOR TO BOLSTER 35.4″
SLIDE ADJUSTMENT 3.54″
WEIGHT 31 000LBS
FLOOR SPACE REQUIRED 88″ x 71.6″
